Insight
Description
Insight glass moving wallsis a very special kind of moving wall with maximumtransparency and optimum acoustics.Insight features superb engineering. Each panel is formedfrom a 90mm aluminum frame over clad either side with 6mmtoughened glass. The frame is concealed by an ultra-thin friton the inside face in any RALcolour.

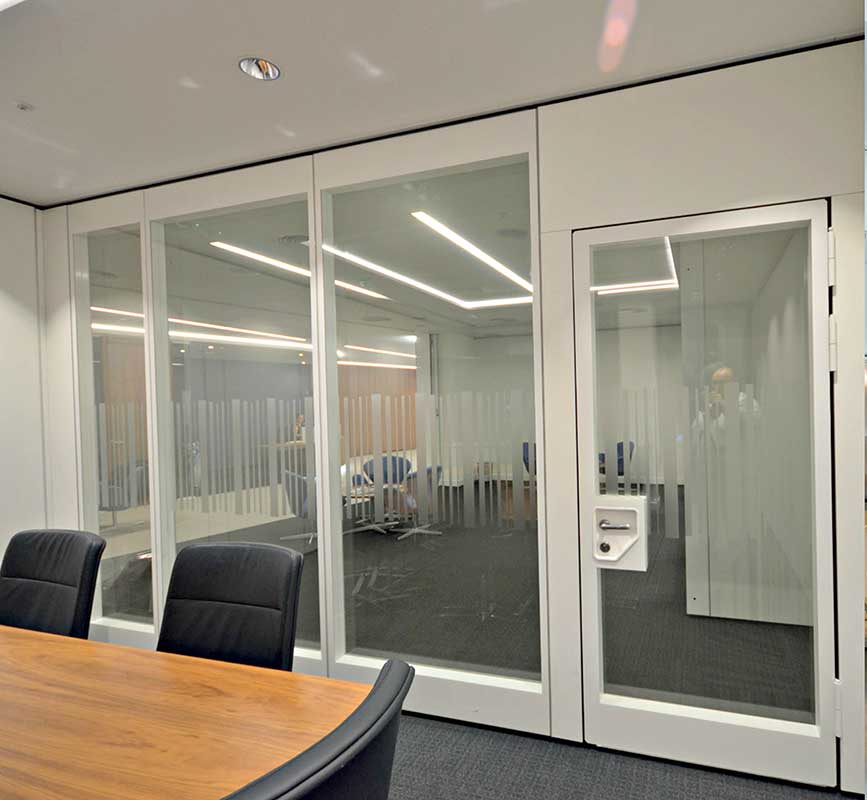

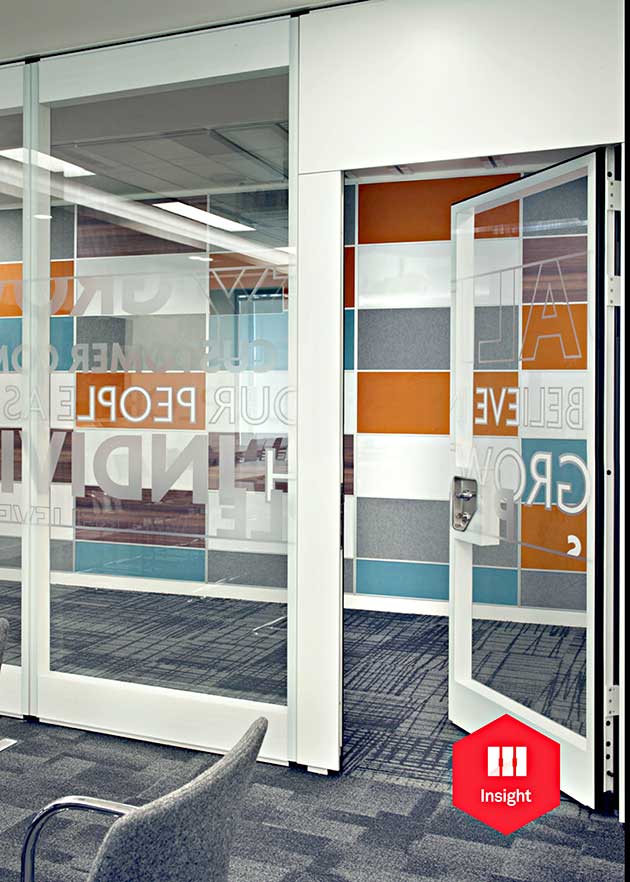

The philosophy of precise engineering carries through to theinternal mechanisms. Basic panels have extension rods withinthe frame and the final panel in a run features a telescopicnose in a solid material. Alternatively, an expanding jamb canbe specified.Insight from Apton is the only glass moving wall system tooffer a fully glazed pass door, both inset and full-height. Theacoustic performance of Insight is a truly remarkable Rw45db.
Specification
TECHNICAL DETAILS |
GLASS |
---|---|
Acoustic rating dB (Rw) |
45dB |
Panel thickness |
110mm |
Weight KG/M2 |
Contact greenhawk for details |
Max. height |
3500mm |
Max. panel width |
1250mm |
Board type |
SAA Aluminium frame + glass |
Operable seal |
Semi-automatic (button operated) |
Track system |
Aluminium SP + TP |
Tolerance height MM |
+/-3mm |
Tolerance width MM |
+/-3mm |
